Air Cups Komplett system

Air Cups Komplett system

AC-KP

13.990,00 NOK
13.990,00 NOK
Salg Utsolgt
Inkludert avgifter. Frakt beregnes ved kassen.
Air Cups system fra Stanceparts Komplett system for bak og foran, inkl styring Diameter du har på demperstang foran og bak må noteres med bestillingen, legges til i merknader til ordre. Følgende diametere er tilgjengelig foran: 12.5mm, 14mm, 15mm, 16mm, 18mm, 20mm, 22mm og 40mm Følgende diametere er tilgjengelig bak: 12.5mm, 14mm, 15mm, 16mm, 18mm, 20mm, 22mm og 40mm Se beskrivelse lenger ned Trenger du fjærer, finner du det her: https://www.luftunderstell.no/produkt/bc-racing-fjaerer-for-air-cups/

Air cups monteres på toppen av coilovers for å kunne heise inntil 5cm når det trengs

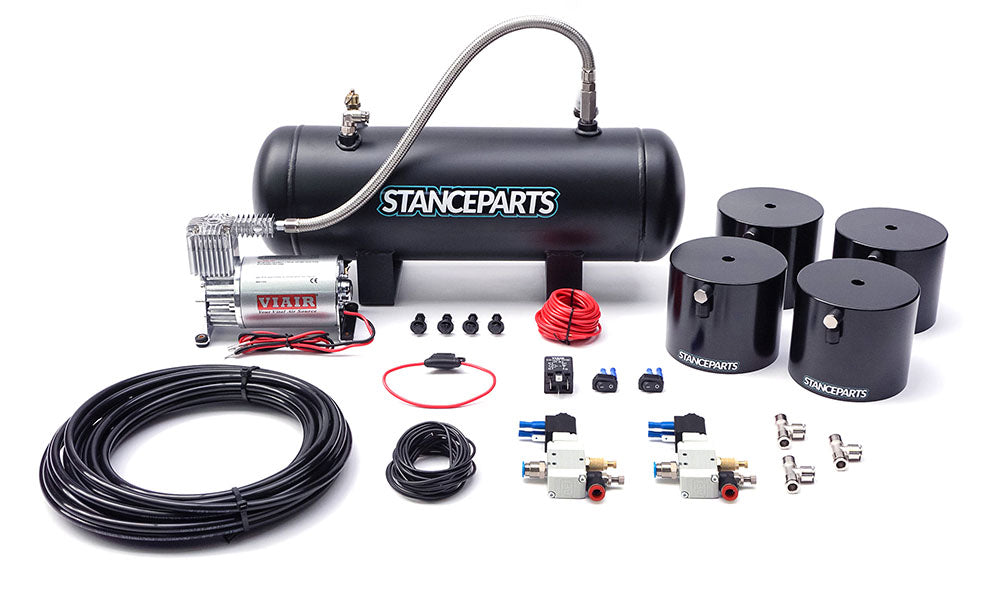

Inneholder

  • 4 stk air cups
  • 12 meter slange
  • t-stykker
  • 2 stk 12v 3-veis ventiler + bryter og 5m kabel
  • ViAir kompressor
  • 2 Gallon tank
  • Monteringsmatriell
  • 2 års garanti på air cups

FITMENT REQUIREMENT

The air cups will fit any brand coilovers, as long as they meet the requirements.
Please follow the steps below before ordering.

STEP 1

Checking coilover clearance and springs

Clearance

CLEARANCE

Make sure you have enough clearance around the coilovers, the air cups are 120mm in diameter, the fitting is 17mm. (110mm air cups available on request)

straight

SPRINGS

The air cups can only be installed on linear springs, it will not fit on ''shaped'' springs as shown in the figure. In some situations shaped springs can be changed to linear springs.

STEP 2

Measuring

measuring

DAMPER SHAFT

Measure the thickest part of the shaft, we strongly recommend to measure with a caliper.
Air cups are available for coilover shaft diameters: 12,5mm, 14mm, 15mm, 16mm, 18mm, 20mm, 22mm, 40mm* and 45mm*

Measure

SPRING DIAMETER

Maximum outer diameter: 99mm.
Minimum inner diameter: 61mm. (57mm on request)

STEP 3

Installation

height-stack

RIDE HEIGHT

In most cases the air cup will take between 20 and 30mm of height. The air cup itself is 20mm thick and with most coilovers the top hat comes on top of the air cup, this will take around 10mm. If there is enough thread left on the coilovers to lower the springs, it won't be a problem. If not, you will need to install shorter springs.

Droop - rebound

SPRING ADJUSTMENT

The lift from the air cups comes from the droop / rebound of the coilovers. If you don't have enough droop, the air cups simply can't lift the full 50mm. If you're using the standard spring rates that came with your coilovers, it should be fine. If you're using higher spring rates we recommend to use helper springs to get the full lift.

WHAT IS DROOP?

Droop, also called rebound, is basically the amount of travel you have between ride height and full extension. Too much preload will decrease droop, we recommend to set a minimal preload. If you're using extreme high spring rates, higher than the original rates that came with your coilovers, the weight of the car won't compress the springs enough to create enough droop. This problem can be solved by installing helper springs, these will create enough droop for the air cups to lift.

Max total car weight: 2000 kg / 4400 lbs * Limited for 40mm cups: 1750 kg / 3850 lbs
The air cup lift system does not affect the ride quality and performance of your coilovers.The process of assembly is clearly described in the manual. Click here for an online view of the manual.
An air cup lift system is also known as air cup suspension, an air cup kit or a coilover lift system.
